Conical screw mixer
Delivering gentle, high-uniformity powder blending with a low-shear, energy-efficient conical screw design.
Country of Origin: Henan, China
Technical Parameters:
-
Effective Volume: 0.18-18 m³
-
Maximum Batch Capacity: 200-18000 kg
-
Capacity: Customers’ Request
-
Material: Stainless Steel , Carbon steel
Get a Fast Quote from the Manufacturer
- Reply within 12 hours
- Free technical advice
- No spam, no obligation
Direct Manufacturer · Custom Solutions · CE & ISO Certified

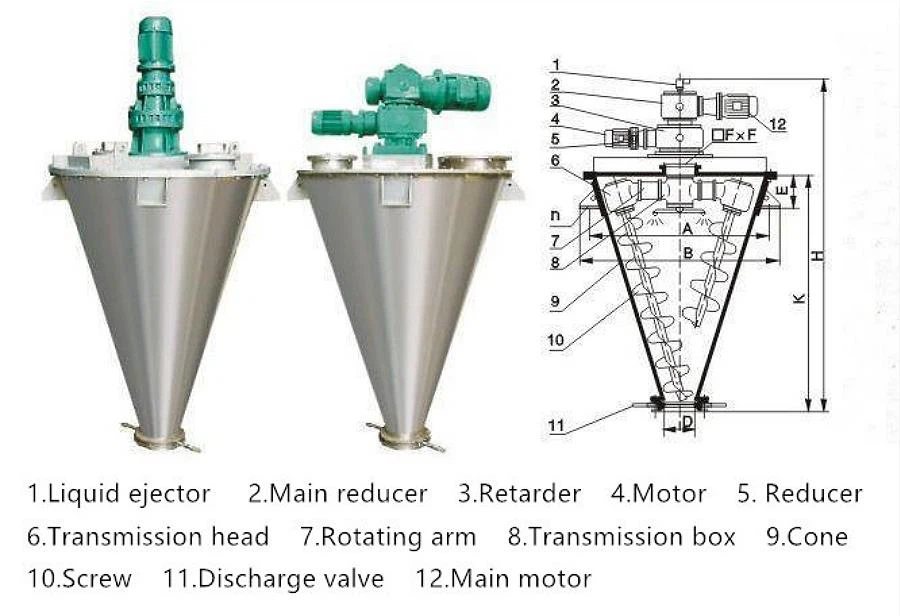

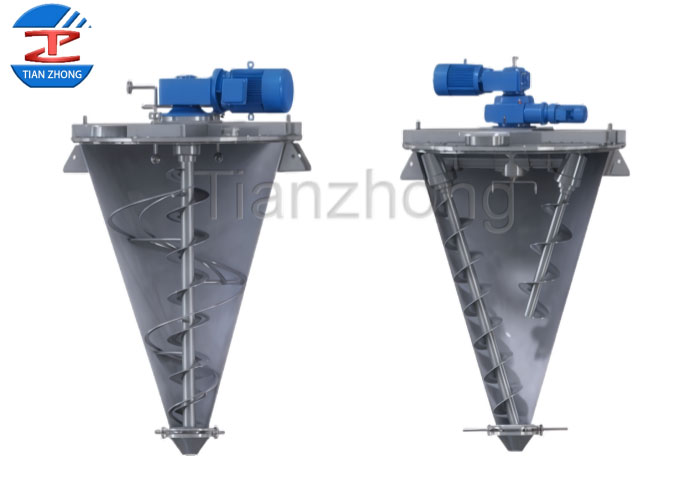

What is conical screw Mixer ?
The conical screw mixer is a precision blending apparatus widely employed across the chemical, food, pharmaceutical, dye, and plastics industries. Its distinctive conical configuration and highly efficient twin-screw ribbon agitation design deliver exceptional uniformity and gentle mixing characteristics when processing powders, granules, or paste-like materials. This equipment is particularly well-suited for materials sensitive to shear forces or exhibiting significant density variations.
Main Features
Performance Advantages
- Gentle 3D mixing motion
- No dead zones for complete discharge
- Low power consumption
- Suitable for fragile materials
Custom Options
- Multiple capacity sizes
- Various surface finishes
- Heating/cooling systems
- PLC control options
contact us to get your solution for free!
Applications
Food & Bakery
- Dough, batter, icing
- Chocolate, butter, margarine
- Meat paste, sausage filling
Chemicals & Adhesives
- Paints, coatings, pigments
- Sealants, adhesives, putty
- Thick paste chemicals
Pharmaceuticals & Cosmetics
- Creams, ointments, lotions
- Toothpaste, shampoo paste
- Cosmetic foundations
Building Materials
- Ceramic tile adhesive
- Grout, mortar mix
- Thick slurry compounds
Technical Parameters
| Specification model | Effective volume (m³) | Maximum batch capacity (kg) | Revolution/rotation (r/min) | Drive Power (kw) | Equipment weight | D | H |
|---|---|---|---|---|---|---|---|
| DSH-0.3 | 0.18 | 200 | 3.5/120 | 3 | 500 | Ø 950 | 206 |
| DSH-0.5 | 0.3 | 300 | 3.5/120 | 3 | 600 | Ø 235 | 1150 |
| DSH-1 | 0.6 | 650 | 3/78 | 5.5 | 1500 | Ø 350 | 1950 |
| DSH-2 | 1.2 | 1200 | 3/78 | 5.5 | 1500 | Ø 350 | 1950 |
| DSH-3 | 1.8 | 1800 | 3/78 | 7.5 | 2300 | Ø 376 | 2170 |
| DSH-4 | 2.4 | 2500 | 1.8/65 | 11 | 2520 | Ø 436 | 2280 |
| DSH-6 | 3.6 | 3600 | 1.6/65 | 15 | 3700 | Ø 480 | 2560 |
| DSH-10 | 6 | 6000 | 1/65 | 18.5 | 3980 | Ø 590 | 3000 |
| DSH-15 | 9 | 9000 | 1/65 | 22 | 4500 | Ø 668 | 3450 |
| DSH-20 | 12 | 12000 | 1/44 | 37 | 5500 | Ø 670 | 3770 |
| DSH-30 | 18 | 18000 | 1/44 | 45 | 6800 | Ø 750 | 4100 |
Note: Due to product improvements or customer customization, if the table parameters are different from the actual product, the actual product shall prevail.
