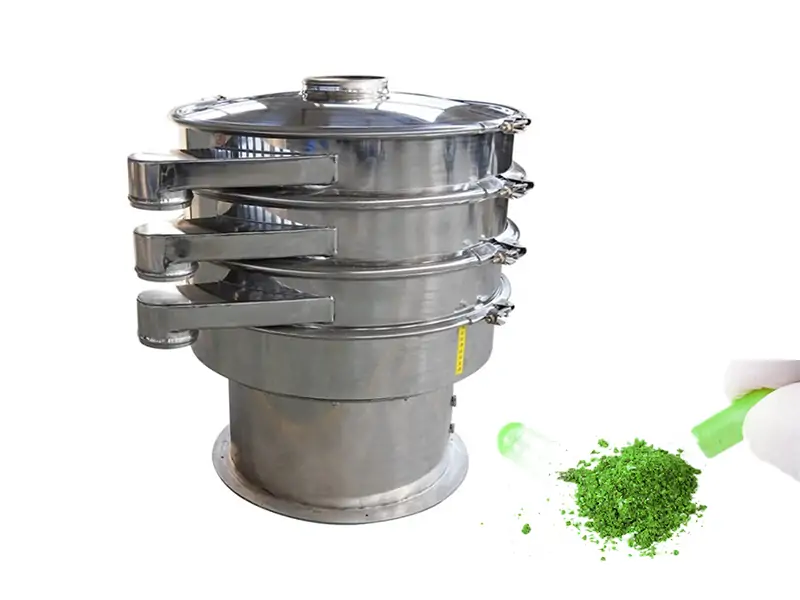

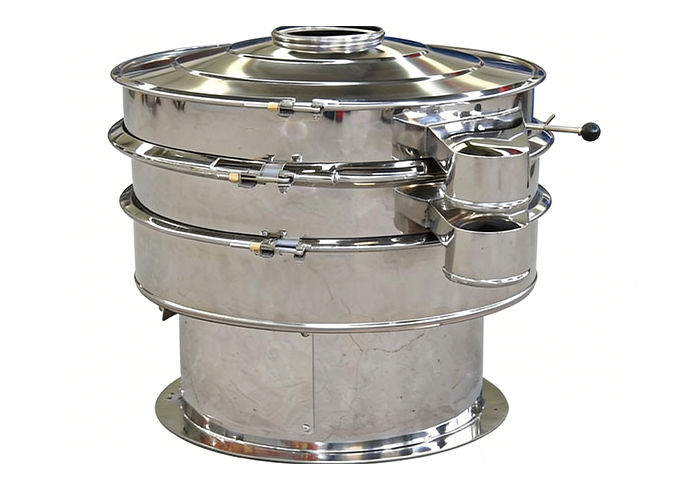

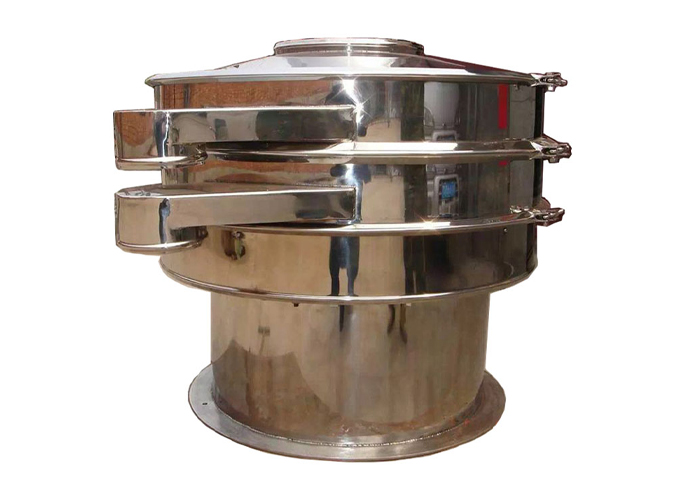

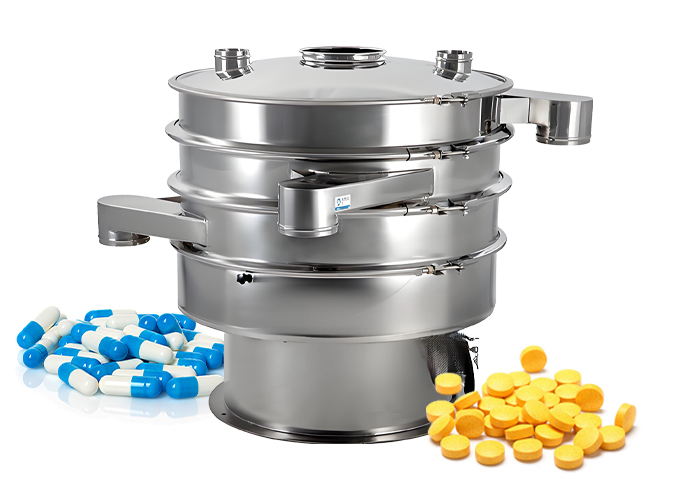

Pharmaceutical Vibro Sifter
Ideal for the fractionation and separation of pharmaceutical dry powders, granules and semi-solids/liquids.
Technical Parameters:
-
Capacity: 100-3300 kg/h
-
Screen Mesh Size: 5-500 mesh
-
Layers: 1-5 layers
-
Material: Stainless Steel 304 / 316L
Application: Pharmaceuticals such as pharmaceutical intermediates, medical excipients, Chinese medicine powder, Chinese medicine liquid, Western medicine powder, Western medicine liquid and other acidic, alkaline and oily materials
Get a Fast Quote from the Manufacturer
- Reply within 12 hours
- Free technical advice
Direct Manufacturer · Custom Solutions · CE & ISO Certified
What is pharmaceutical vibro sifter?
Pharmaceutical vibro sifter is specifically used in the pharmaceutical industry to remove any oversized contaminants (such as some packaging, a piece of personal protective equipment or foreign matter that may be inherent in the material) from pharmaceutical powders or pharmaceutical granules that may accidentally enter the production line, whether it is API Pharmaceutical vibro sifter is inseparable from the removal of impurities, grading of powder granules, powder removal of tablets, standardization of particle size of capsules, filtration of injections, and selection of traditional Chinese medicine powder.
- The Pharmaceutical vibro sifter is made of pharmaceutical grade SUS304 or 316 stainless steel.
- The surface finish of the machine inside and outside is 0.1-0.2 RA, which makes the cleaning of the machine very easy, ensuring no material deposition and zero chance of material contamination, preventing contamination and providing dust-free operation.
- The closed construction prevents leaks and helps keep the screening material safe from external interference.
🔹 Not sure if this screen suits your material? Our engineers can help you select the right configuration.
Applications
API & Intermediates
- Active Pharmaceutical Ingredients (APIs)
- Excipients, Antibiotic Powders
- Pharmaceutical Intermediates
TCM
- TCM Powder, Herbal Extracts
- Chinese Medicine Granules
- Pills/Bolus
Common Excipients
- Lactose, Sucrose/Sugar Powder
- Magnesium Stearate, Dextrin
- Microcrystalline Cellulose
Special formulations
- Capsule Pellets
- Vitamin Powders
- Amino Acids, Dental Powders
Different materials require different mesh sizes and configurations.
Our engineers recommend suitable models based on your material.
Explore Our Key Integration Examples
Our pharmaceutical vibro sifters are meticulously engineered for safety screening, particle size grading, and solid-liquid separation of API powders and excipients:

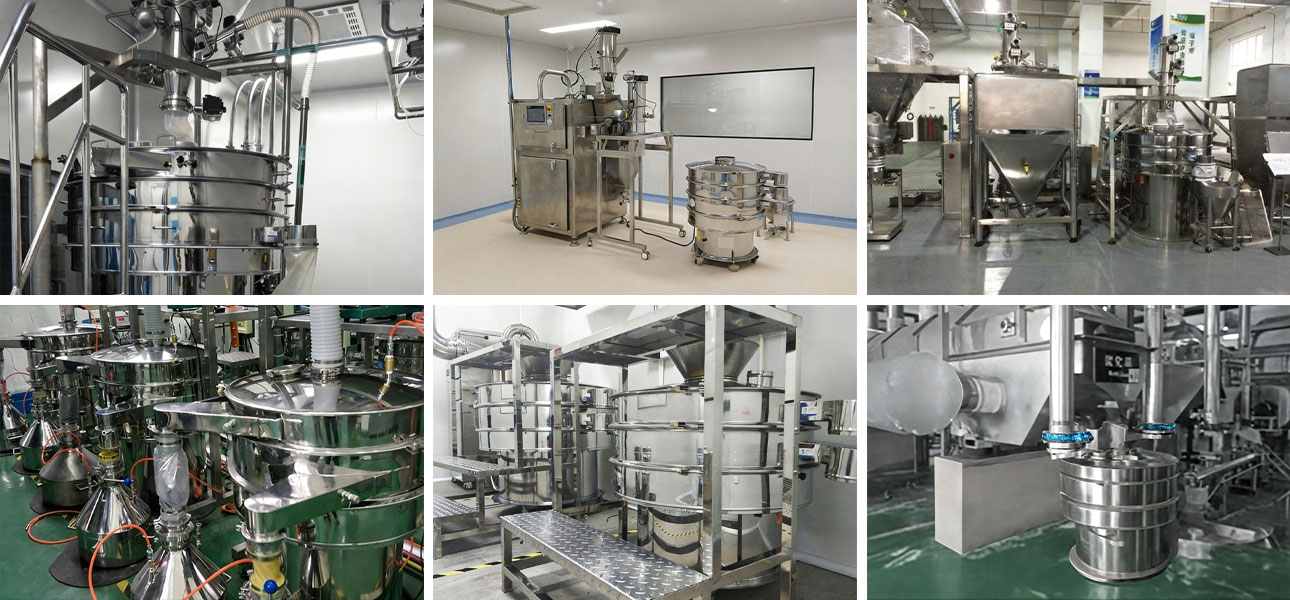

Customer Site
From concept to production, we prioritize project profitability and balance complexity and feasibility in the design. From process and equipment audits, to getting your equipment running in optimal condition and retrofitting custom solutions, we can do it all.
contact us to get your solution for free!
Product Showcase
Product Images
Product Videos
Give us a email or Simply Complete the Form
Address:Xinxiang City, Henan Province, ChinaEmail:admin@hntzs.comWhatsApp:+86 18937322992Phone:+86 18937322992
Main Features
Performance Advantages
- Screening accuracy with precision up to 500 mesh and over 95% efficiency
- Enhanced material fluidity and permeability for significantly higher screening output
- Excellent anti-blocking performance with optional ultrasonic system to keep mesh clean
- Compact and fully enclosed design to prevent dust leakage
- Low noise, small footprint, and easy to move or maintain
Custom Options
- 1–5 screen layers available to meet different screening requirements
- Bouncing ball material options: silicone, rubber
- Materials optional:contact stainless steel,all-stainless steel
- Seal types customizable: medical-grade hygiene standard rubber
- Custom inlet/outlet design to fit your production layout
Technical Parameters
| Model | Power (kW) | Screen Diameter (φ) | Volume (mm) | Number of Layers |
|---|---|---|---|---|
| HC-400 | 0.18 | 320mm | 580 × 580 × 560 | 1~3 |
| HC-600 | 0.37 | 550mm | 800 × 800 × 680 | 1~3 |
| HC-800 | 0.55 | 750mm | 900 × 900 × 780 | 1~3 |
| HC-1000 | 0.75 | 950mm | 1160 × 1160 × 880 | 1~3 |
| HC-1200 | 1.5 | 1150mm | 1360 × 1360 × 980 | 1~3 |
| HC-1500 | 2.5 | 1450mm | 1850 × 1850 × 1130 | 1~3 |
| HC-1800 | 3.7 | 1750mm | 2200 × 2200 × 1360 | 1~3 |
