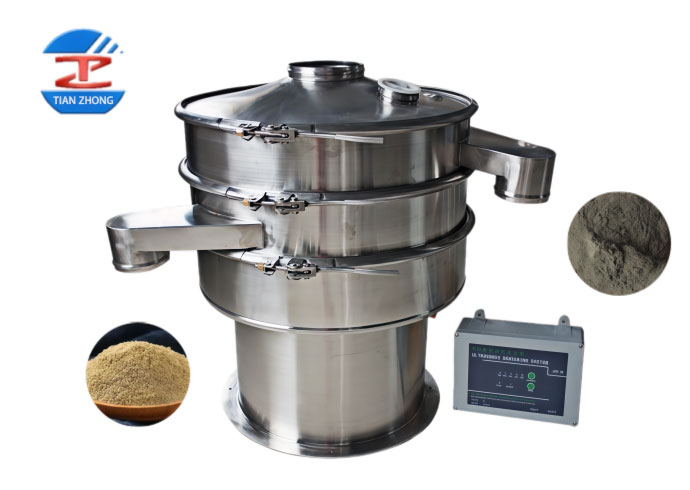

Ultrasonic Vibrating Screen
Achieving ultra-fine, high-precision screening with advanced ultrasonic anti-clogging technology.
Technical Parameters:
-
Screen Diameter: 16-78 inches or 400–2000 mm
-
Screen Mesh Size: 2-500 mesh or customized
-
Layers: 1-5 layers
-
Power: 0.7 kW
-
Material: Stainless Steel 304 / 316L , Carbon steel
-
Customization: All components can be customized
-
Material Types: Powder, Granules, Bulk Solids
Applicable Industries:
Food Industry, Pharmaceutical Industry, Chemical Industry, Battery Materials, Silicon Materials, Metallurgy, Non-Metallic Mining, etc.

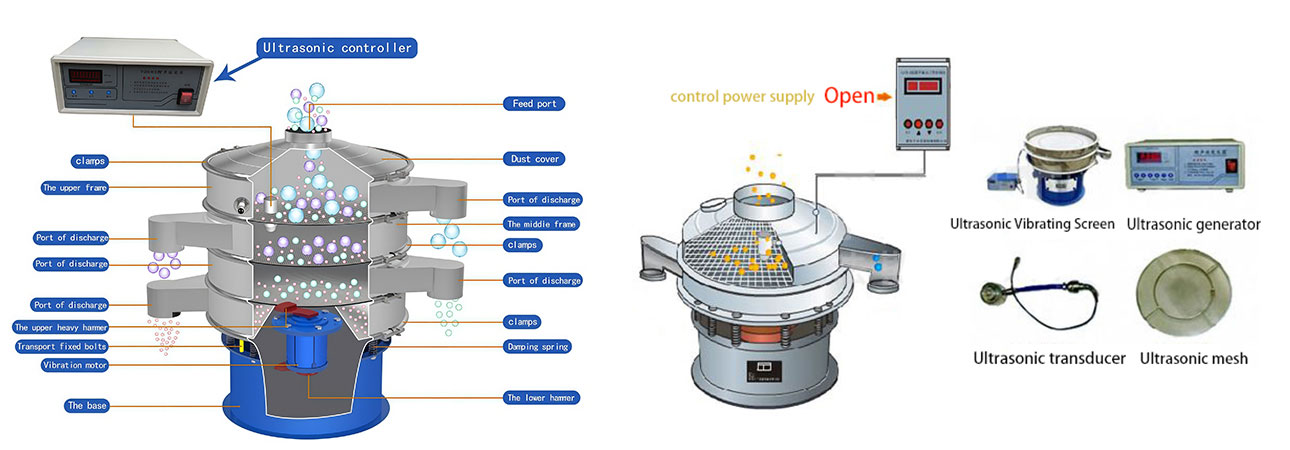

What is Ultrasonic Vibrating Screen?
The ultrasonic vibrating screen is an advanced sieving machine that integrates ultrasonic technology with high-frequency vibration to achieve ultra-fine and efficient particle separation. It is specially designed to handle difficult-to-screen materials, such as those with strong adhesion, static charges, lightweight properties, or tendencies to agglomerate.
Main Features
Performance Advantages
- Ultrasonic vibration prevents mesh clogging and boosts screening efficiency
- Achieves precise screening up to 600 mesh with stable and consistent output
- Improves powder flowability for higher throughput and finer separation
- Fully enclosed design ensures dust-free and clean operation
- Low noise, low energy consumption, and easy to clean or maintain
Custom Options
- Ultrasonic system: single-frequency, dual-frequency, or auto frequency tracking

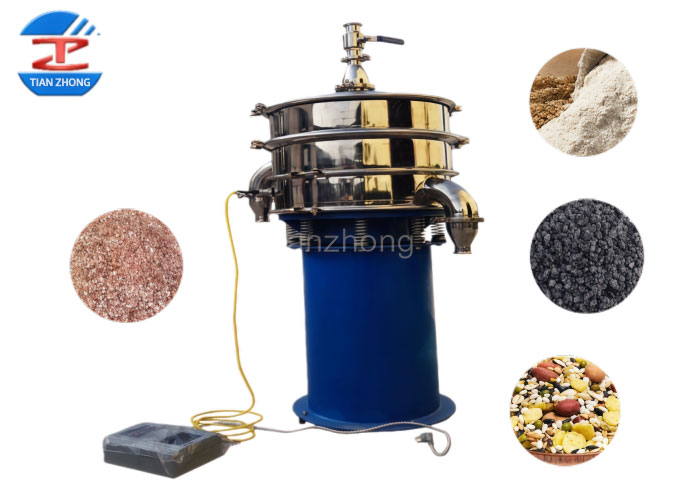

- Explosion-proof motor and control box for hazardous environments
- 1–5 screen layers for multi-grade separation
- Seal materials: silicone, rubber, PTFE, or high-temperature types
- Custom inlet/outlet size, angle, and height to fit production layout
- Optional quick-release clamps for faster cleaning and mesh replacement
contact us to get your solution for free!
Applications
New Energy Materials
- LFP, ternary materials
- Lithium cobalt oxide, LNCM, graphite
- Battery-grade additives and fine powders
Chemicals Powders
- Spherical silica, fused silica, microsilica
- Resins, pigments, dyes, fillers
- Activated carbon, catalysts
Food & Pharmaceuticals
- Coffee powder, cocoa powder
- Starch, powdered sugar, food additives
- Chinese & Western medicine powders
Metal & Mineral Powders
- Copper, aluminum, iron, alloy powder
- Quartz sand, glass powder, alumina
- Abrasives: corundum, emery
Explore Our Key Integration Examples
Our ultrasonic vibrating screens are expertly designed for a wide range of applications:
Technical Parameters
| Model | Parameter | Category | Parameter |
|---|---|---|---|
| Frequency | 35KHZD | Electrical system and dimension | 300mm*300mm*300mm |
| Power supply | 220V-240V 50/60HZ | Clamshell | IP65 |
| Working mode | Contact work style | Adjustment range | 50–100% |
| Maximum environmental temperature | -10–45°C | Resonator | Plug type |
Product Showcase

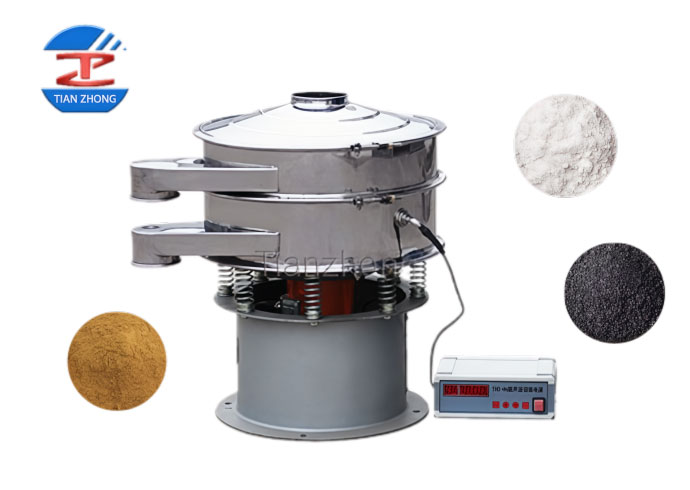

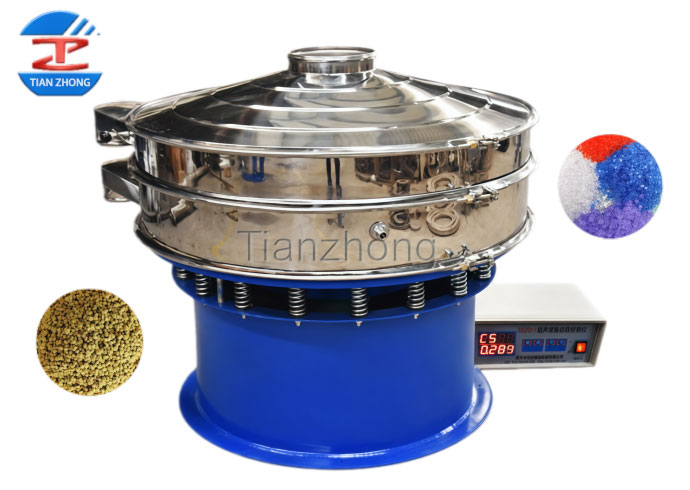

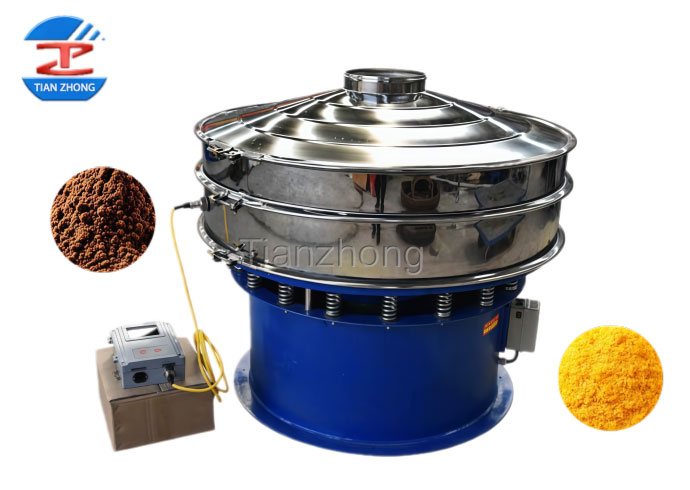

Product Images
Product Videos
Give us a email or Simply Complete the Form
Address:Xinxiang City, Henan Province, ChinaEmail:admin@hntzs.comWhatsApp:+86 13837339270Phone:+86 13837339270

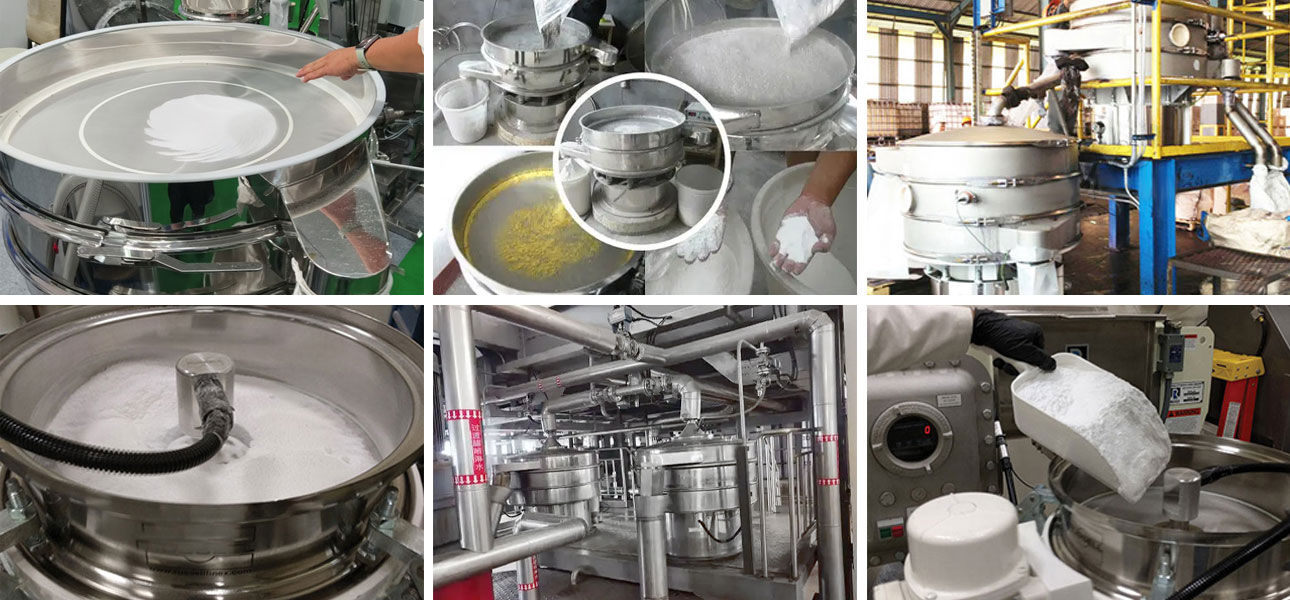

Customer Site
