V-type Mixer
Achieve consistent, gentle mixing ideal for precision formulations and sensitive materials.
Country of Origin: Henan, China
Technical Parameters:
-
Mixing loading volume(L): 2 to 8000
-
Dimension(L*W*H): Customers’ Request
-
Adjustable frequency(RPM): 3 to 7
Get a Fast Quote from the Manufacturer
- Reply within 12 hours
- Free technical advice
- No spam, no obligation
Direct Manufacturer · Custom Solutions · CE & ISO Certified

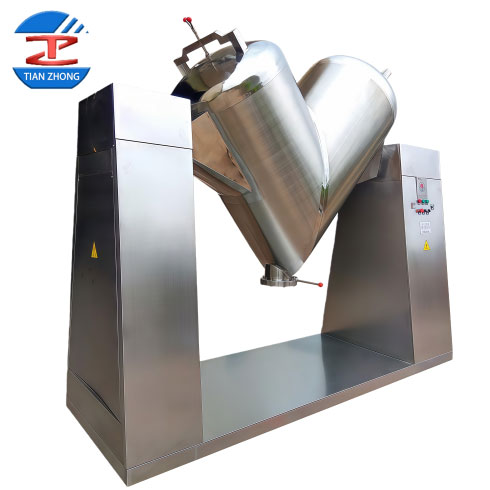

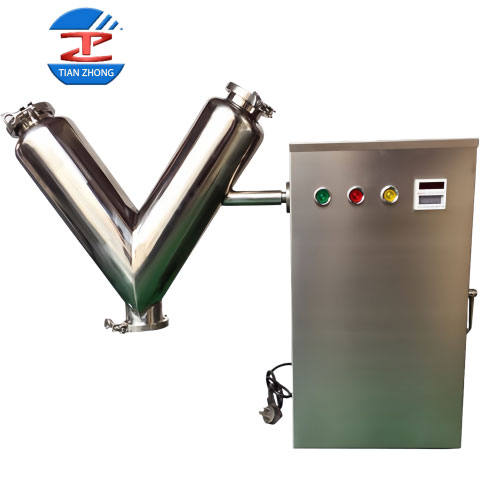

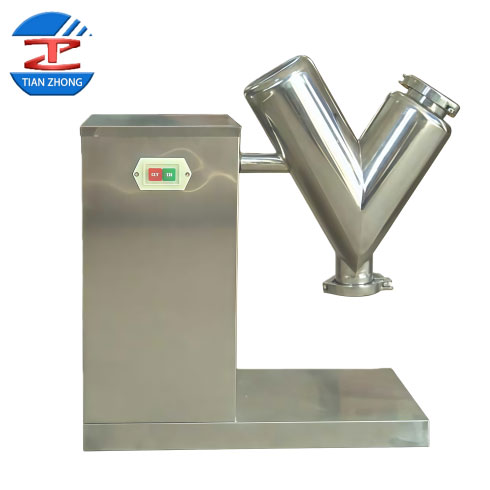

What is v-type mixer?

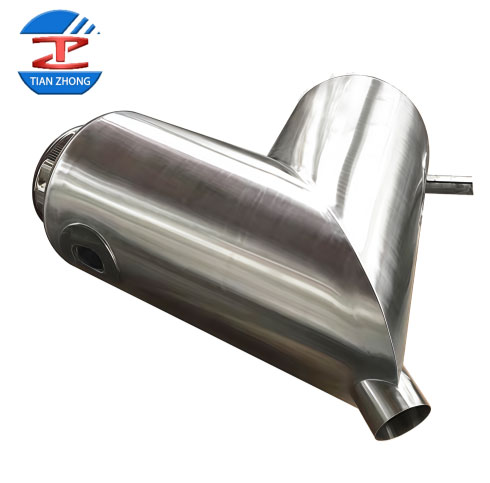

The V-type Mixer is a device that achieves efficient mixing by utilizing a rotating drum to create internal material separation. Its mixing chamber is formed by welding two asymmetrical cylinders into a V-shape. During rotation, materials undergo repeated division, merging, and diffusion, enabling rapid, gentle, and uniform blending. It is particularly suitable for mixing free-flowing powdered and granular materials, as well as materials with significantly differing specific gravities.
Main Features
Performance Advantages
- High mixing efficiency
- Thorough particle distribution
- Fast discharge cycle
- Easy cleaning
Custom Options
- Multiple capacity sizes
- Intensifier bar options
- Spray nozzle systems
- Various surface finishes
contact us to get your solution for free!
Applications
Food & Bakery
- Dough, batter, icing
- Chocolate, butter, margarine
- Meat paste, sausage filling
Chemicals & Adhesives
- Paints, coatings, pigments
- Sealants, adhesives, putty
- Thick paste chemicals
Pharmaceuticals & Cosmetics
- Creams, ointments, lotions
- Toothpaste, shampoo paste
- Cosmetic foundations
Building Materials
- Ceramic tile adhesive
- Grout, mortar mix
- Thick slurry compounds
Technical Parameters
| Model | V50 | V200 | V300 | V500 | V1000 | V1500 | V2000 | V2500 | V3000 |
|---|---|---|---|---|---|---|---|---|---|
| Production Capacity (kg/h) | 10 | 50 | 80 | 100 | 200 | 300 | 400 | 500 | 600 |
| Mixing Time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-10 | 10-12 | 10-12 |
| Volume (m³) | 0.05 | 0.2 | 0.3 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 |
| Rotation Speed (r/min) | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 | 10 |
| Motor Power (kW) | 0.55 | 1.1 | 1.1 | 2.2 | 4 | 4 | 7.5 | 11 | 11 |

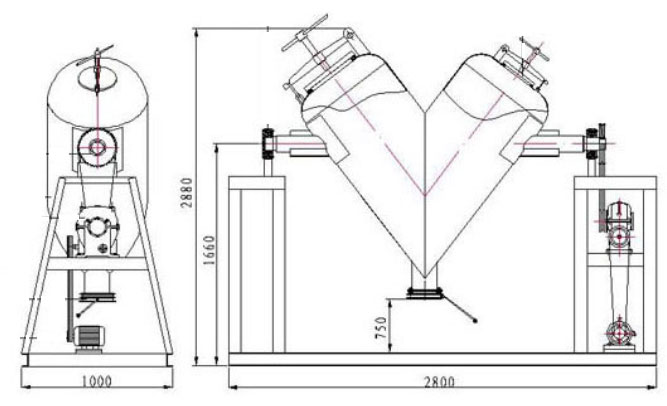

| Overall Dimensions L×W×H (mm) | 1100×600×1100 | 1780×650×1850 | 1800×650×1850 | 2500×850×2420 | 2950×1400×3000 | 3190×1450×3100 | 3800×1600×3310 | 4100×1600×3450 | 4300×1600×3860 |
| Total Rotation Height (mm) | 1450 | 1850 | 1850 | 2450 | 3000 | 3100 | 3700 | 3790 | 3900 |
